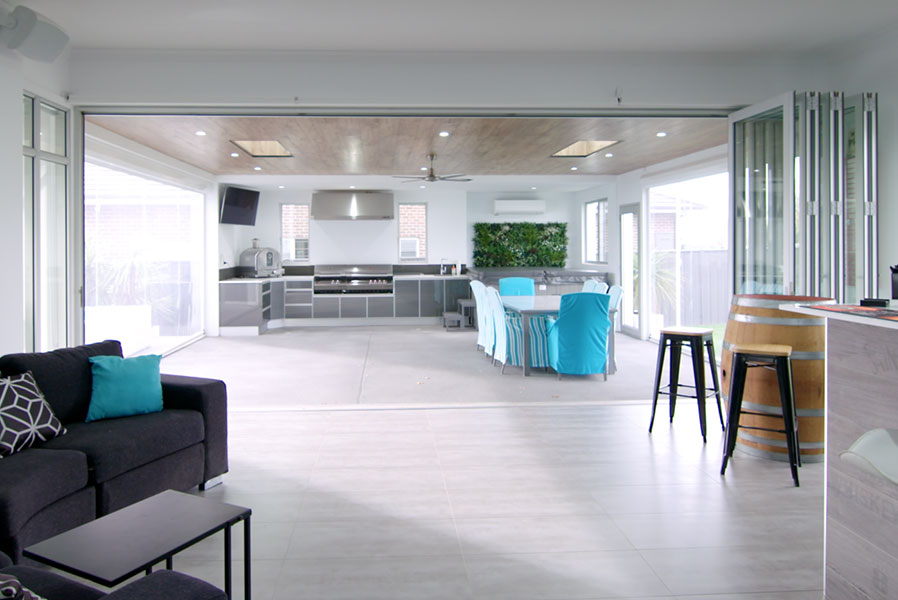

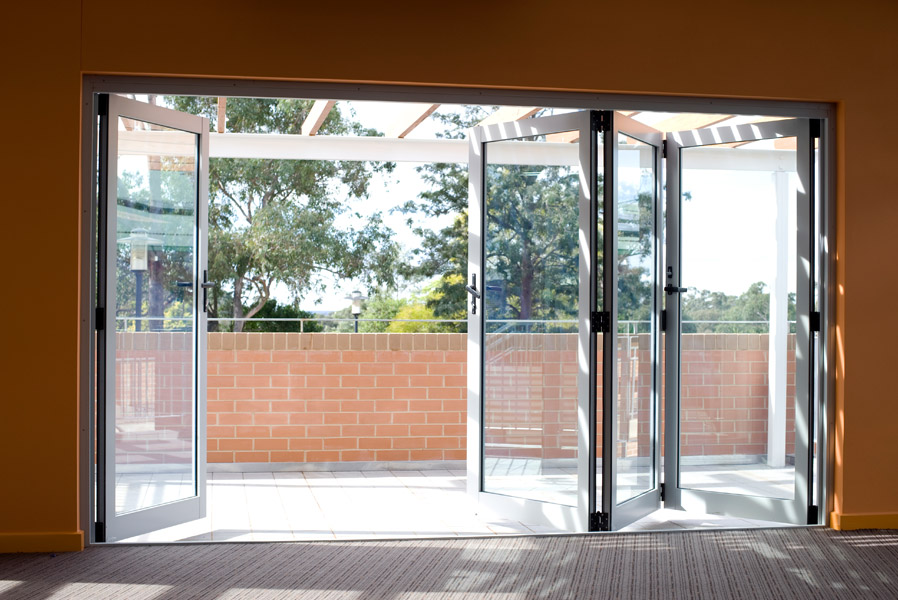

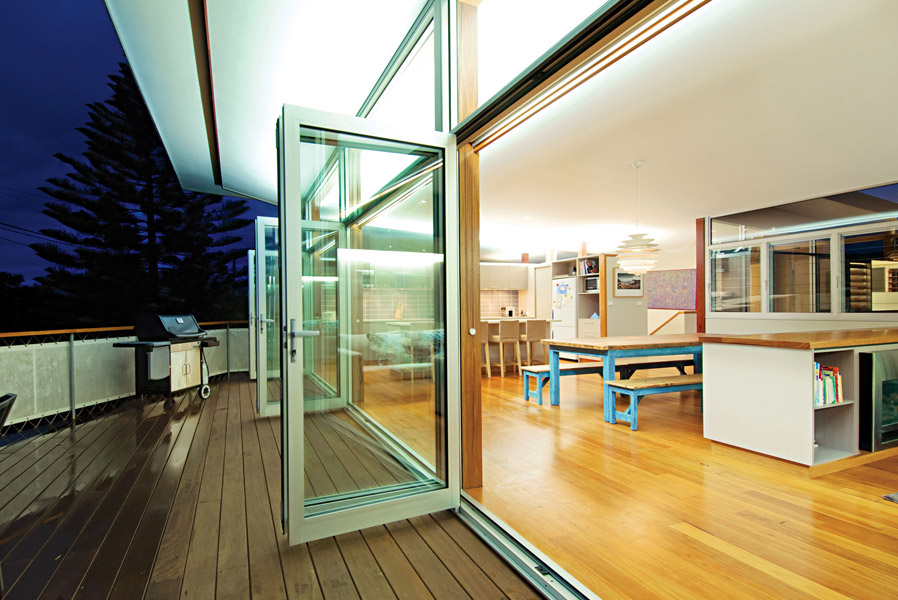

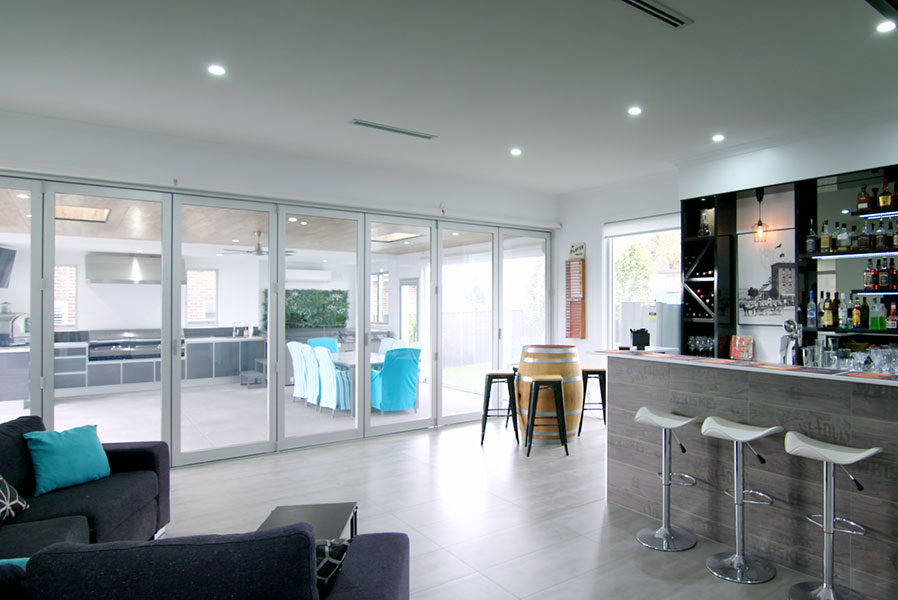

FoldMASTER™ Bi-Fold Door (bottom rolling)

FoldMASTER™ Bi-Fold Door (bottom rolling)
Maximum Panel Height* 3000mm
Maximum Panel Width* 1000mm
Maximum Glass Thickness ≤ 28mm
SHGC Range 0.14 - 0.59
Uw Range 3.3 - 6.2
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • The Series 410 Bi-fold door is an exceptionally strong bi-fold system designed to accept the heavy duty AWS Series 50, 51 and 52 doors.
  • This bi-fold door can accommodate compliant bi-fold panels up to 3000mm high.
  • Rebated door stiles give a flush appearance when the two bi-fold doors meet and provide superior weather protection.
  • A variety of lever and lock options are available including proprietary multi-point and lever compression locking for added security.
  • Successfully tested for water resistance at 450Pa.
  • Bi-fold doors can be configured to incorporate single or double entry doors.
  • Custom door co-extruded Santoprene bulb seal for maximum weather performance.
  • Bi-fold door panels are supported on quad rollers running on heavy duty dual bottom rails.
  • As the bi-fold doors are supported at the sill (sill rollers) we can fit overlights. Overlights can be fixed glass or opening sashes.
  • Series 410 bi-fold doors can be fitted with Centor S1E Eco Screen

Resources & Downloads

  • FEATURES OVERVIEW

    • Running Gear

      Heavy duty double bogey, bottom rolling running gear.
      Running Gear
    • Bi-parting

      Specially designed runners to inhibit clashing in a bi-parting configuration.
      Bi-parting
    • Door Beads

      A range of various door beads available including double glazed option.
      Door Beads
    • Hardware

      A full range of hardware available including multiple 4-point locking mechanisms.
      Hardware
    • Seals

      Multiple compression bulb seals ensure high weather resistance.
      Seals
    • Door Seals

      All door panels have heavy duty spigoting.
      Door Seals
