Architectural Series | Series 702

Architectural Series | Series 702

SlideMASTER™ Sliding Door (External Sliding)

SlideMASTER™ Sliding Door (External Sliding)
Maximum Panel Height* 3000mm
Maximum Panel Width* 1860mm
Maximum Glass Thickness ≤ 24mm
SHGC Range 0.15 - 0.59
Uw Range 3 - 6.2
Acoustics Testing Certified AS2047 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail

Key Features / Performance Characteristics

  • The Series 702 high performance sliding door has been tested for compliance with the relevant Australian Standards. Achieved a very high water resistance of >600Pa and complied with the air conditioning requirements of the standard.
  • The extra strong multi-hollow meeting stiles allow large sliding doors to be fabricated in high wind load areas.
  • There are a large variety of sliding door combinations possible XXF, FXX, XF, FX, FXF, XFF, FFX, FXXF and FXXXXF. A 90º corner unit FX^XF and FXX^XXF also available.
  • These sliding doors are compatible with the high performance Series 406 / 606 and 426 / 626 FrontGLAZE™ framing.
  • Sliding doors can be fitted with surface mounted deadlock, mortice lock or multi-point mortice lock.
  • Series 702 sliding doors run on heavy duty double bogey wheel carriages.
  • Aluminium sub-sills are available and should be used in all installations.
  • Doors can be fitted with internal sliding or roller fly doors.
  • Series 702 sliding doors can be fitted with Centor S1E Eco Screen

Resources & Downloads


    • Sub-Framing

      Sub-sill with central support leg, designed to suit.
    • Rails

      Tall, small, beveled and square rails are all an option. Tall, square rail detailed.

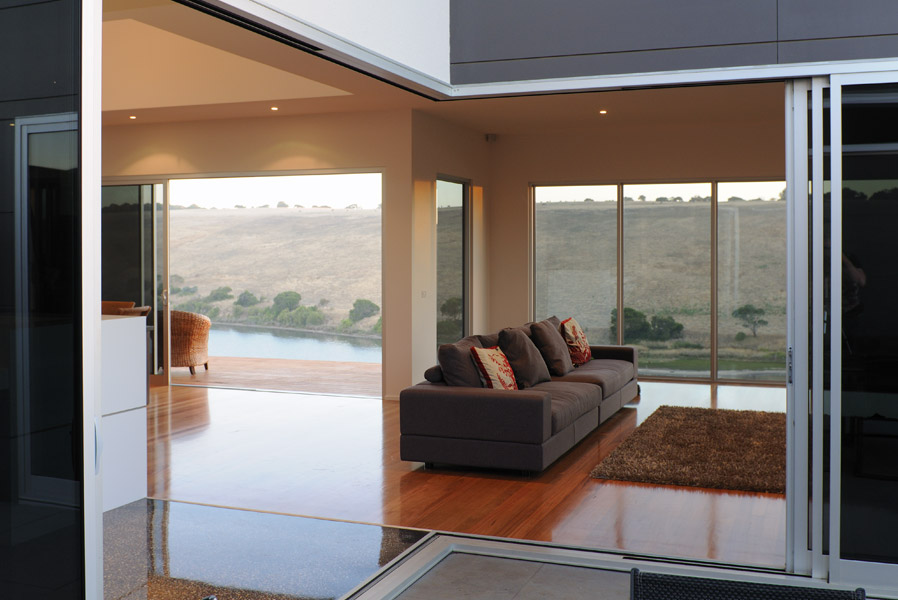

    • Corner

      90º postless internal and external corners an option.
    • Compatibility

      Both 100mm and 150mm compatible with most AWS Commercial suites.
    • Glazing

      Glazing options up to 25mm double glazed unit.
    • Interlocks

      Meeting stile design changes to match required wind load.
