SoundOUT™ Secondary Glazed Sliding Window

Specialty | Series 531

SoundOUT™ Secondary Glazed Sliding Window

SoundOUT™ Secondary Glazed Sliding Window

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.
Maximum Frame Height* 1500mm
Maximum Panel Width* 930mm
Maximum Glass Thickness ≤ 20mm

Key Features / Performance Characteristics

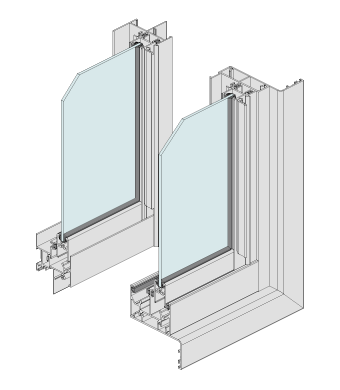

  • The Series 531 SoundOUT™ Sliding window has been specially designed to reduce noise infiltration through window openings. The SoundOUT™ sliding sash system is designed to be installed behind existing or new windows usually on the reveals within the wall dimension.
  • Sliding window sashes are double sealed at all joints for maximum soundproofing.
  • This sliding window provides several locks to choose from including centre multi-point locking.
  • All sliding window sashes on the SoundOUT™ system can be opened to allow cleaning of the inner face of the outer window.
  • Sliding window sashes run on large diameter heavy duty wheels, nylon tyred ball bearing wheels used on the heavier sashes. These wheels are height adjustable to allow sashes to be squared up in the frame.
  • Sashes will accept glass up to 7.52mm thick with full wrap around PVC glazing channel or if preferred SoundOUT™ sliding window sashes can be double glazed.
  • Installing this sliding window product will create a thermally broken, double glazed window that will significantly reduce heating and cooling costs.
