Residential Series | Series 549

Residential Series | Series 549

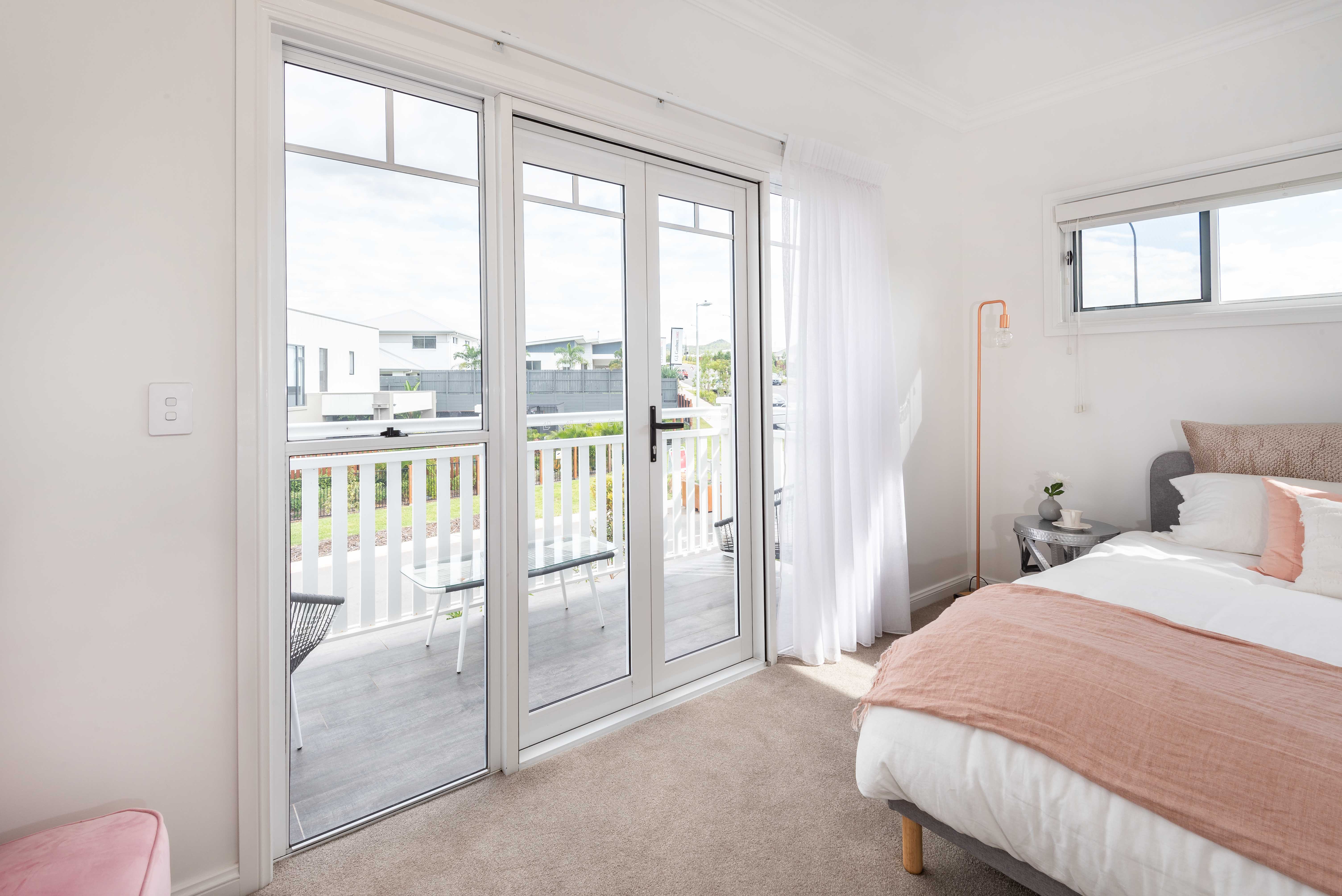

Hinged Entry Door

Hinged Entry Door
Maximum Panel Height* 2350mm
Maximum Panel Width* 900mm
Maximum Glass Thickness ≤ 20mm
SHGC Range 0.23 - 0.56
Uw Range 3.2 - 5.9
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Designed as a replacement for the traditional 135mm x 38mm timber entry door framing. Frames can be delivered to site pre-painted and with door panels and hardware fitted.
  • Self draining sill option on internal opening doors. Alternatively for those exposed locations we recommend the external swing splayed sill. Both internal and external swing doors fitted with sill section have been tested to Australian Standard AS2047 and will resist 200Pa water.
  • The aluminium entry door features extra wide top and bottom rails that give the door the chunky appearance of traditional timber designs.
  • Rebated door stiles give a flush appearance when the two doors meet and provide superior weather protection. Unsightly applied rebates are eliminated.
  • Throwing the lock tongue into timber framing has always been a security weakness. Series 549 aluminium frame will significantly improve this locking point.
  • Doors can be supplied with a lever lock installed in the door stile or with a tulip knob lock placed in a door chair rail.
  • Three proprietary lever lock set options including 316 stainless steel finish for costal applications.
  • Doors can be fitted with custom parliament hinges for those applications where doors have to lay open at 180º against the wall.
  • Rebated frame will accept 19mm screen doors.
  • Door panels can be fitted with ClearVENT™ sashless Double-Hung panels.

Resources & Downloads

  • FEATURES OVERVIEW

    • Beads

      Variety of beading options available including square or splayed.
      Beads
    • Head Details

      Standard and screen door applications.
      Head Details
    • Locking

      Will accept ANDO™, MIRO™ and ICON™ hardware.
      Locking
    • Drainage

      Sill incorporates built in drainage with anti-blowback valve.
      Drainage
    • Sill Design

      Self draining sill to improve weather performance.
      Sill Design
  • COMPATIBLE HARDWARE

    AWS hardware options designed for use with Series 549 Hinged Entry Door.

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 549.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 549 but differ in aesthetics and performance.
