Architecturally inspired systems for superior style and performance

High Performance Sliding Window

Residential Series | Series 752

High Performance Sliding Window

High Performance Sliding Window

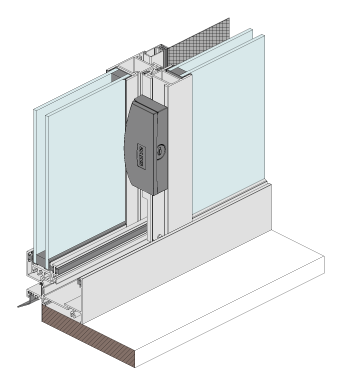

The High Performance 75mm Sliding Window from the Vantage® Residential Series range provides a sleek, modern and high performance sliding window solution for homes.

  • Standard aluminum frame for excellent cost efficiency
  • Sashes nest neatly in the sash for clean sightlines and improved performance.
  • Adjustable, custom quad rollers for long term durability
  • Flyscreens can be fitted and removed easily for cleaning or maintenance
  • Centre mullion lock or optional stile locks available.
  • Accepts 20mm double glazing as standard.

 *Maximum Panel Heights and Widths indicated are interdependent and subject to individual site conditions.

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.
Maximum Frame Height* 1500mm
Maximum Panel Width* 1000mm
Maximum Glass Thickness ≤ 20mm
Uw Range 2.9 - 3.9

Key Features / Performance Characteristics

  • This 75mm high performance residential sliding window offers several unique features. Sliding sashes are nested within the frame, minimising visible aluminium and maximising views.
  • By nesting sashes int eh frame the thermal performance of the window can also be improved, less exposed aluminium for heat transfer between internal and external surfaces.
  • Series 752 sliding windows have been successfully tested for compliance with Australian Standard AS 2047.
  • A high-water resistance rating of 300Pa allows this sliding window to be used in most exposed locations in Australia.
  • A wide range of configuration options enable the window to be fabricated for high wind load areas.
  • Series 752 sliding windows will accept glass up to 20mm IGU's allowing the selection of high-performance glazing options.
  • Sliding sashes can be fitted with key mullion lock or push-button jamb lock.
  • Flyscreens tuck into the head and sill, easily removed for cleaning or maintenance using the custom nylon clips on the sides.
  • Sashes can be re-handed on site (slide direction reversed).
  • Several sash sizes have been successfully tested by an independent NATA accredited testing facility for Safe4kids in accordance with BCA restricted opening.

Resources & Downloads

Add Checked Documents to My Project Download Checked Documents

SpecifyAWS handles and locks which suit the High Performance Sliding Window.
