• An energy efficient window system designed with a minimalist aluminium frame and sash for uninterrupted sightlines and optimal energy performance.
• Water resistance rating of 600Pa makes this awning window suitable for most exposed locations in Australia.
• Successfully tested for compliance with Australian Standard AS 2047.
• Patented chain winder adaptor brackets maintain uninterrupted sightlines similar to fixed lights.

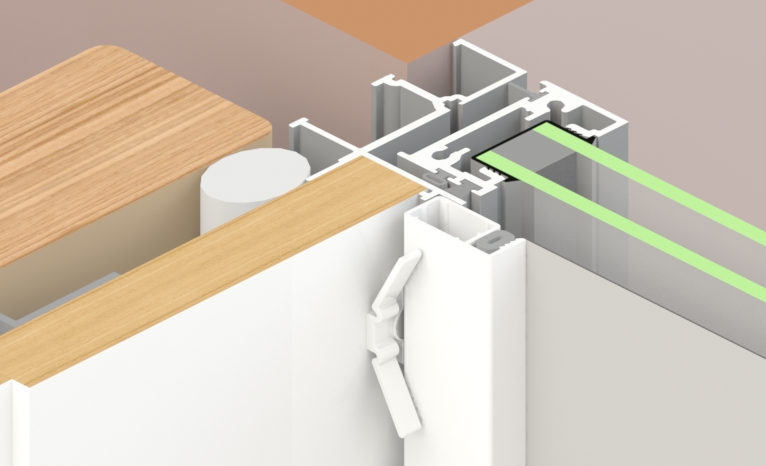

• Concelead sash framing enhances thermal performance by reducing the exposed internal boundary adn thermal transmission of heat and cold.
• Unique patented thermal seal fitted to the essential top single reveal that reduces thermal transmission.

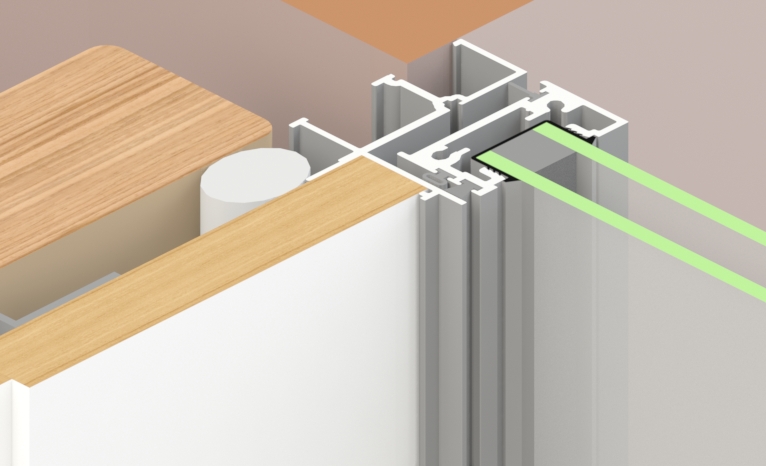

• Twin reveal options for conventional window installation.
• Windows can be fabricated with mullions running through and assembled as modules via snap together mullions. Mullions can also be made to run between heads and sills, which can be an advantage for modern wall construction in regard to water proofing.
• Optional sash and mullion strengths cover a large variety of design wind load areas.
• Wrap around sashes accept 18 to 20mm IGU's with full wrap around glazing channel.
• Fixed light glazing bead will accept 18 to 20mm IGU's.
