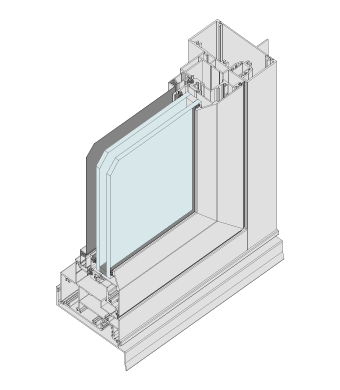

Truth™ Awning/Casement Window 100mm

Architectural Series - Truth™ Awning/Casement Window | Series 468

Architectural Truth Awning/Casement Window

Truth™ Awning/Casement Window 100mm

High performance awning and casement windows with the security you demand and the ease of operation you expect.

  • These high-performance FrontGLAZE awning and casement windows are designed to accept Truth™ Hardware for large installations.
  • In fact, the scissor-type winders require 50% less effort to operate than conventional chain winders and can be combined with stile latches to provide additional locking points for even more strength and security.
  • Extra-strong window sashes carry large glass spans to maximise your available view without compromising on strength or performance.
  • They’ve also been successfully tested to 450Pa water resistance, so they’re ideal for any Australian environment.
  • Fixed sidelights/lowlights and highlights can be single or double glazed for better energy performance and comfort.
  • Installation into brick veneer and cavity brick has been made easier with built-in nailing fins (weather bars) in the perimeter frame.
*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.
Maximum Frame Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 24mm

Key Features / Performance Characteristics

  • This high-performance awning and casement window has been designed to accept Truth™ hardware. This allows us to offer very large casements and awnings fitted with scissor type winders with jamb to stile latches that secure the sashes in the closed position.
  • The extra strong sashes allow large sash windows to be fabricated for high wind load areas.
  • The Truth™ hardware can resist very high negative wind loads with the use of winders and side latches.
  • Hardware comes in standard E-GARD™ or for extreme locations we also offer 304 stainless steel stays,
  • Casement sashes open to 90° and have an opening gap of approximately 80mm on the hinge side, this allows cleaning of external glass face from inside the building.
  • Fixed lowlights/sidelights are designed around Series 406 single glazed and 426 double glazed FrontGLAZE™.

Resources & Downloads

SpecifyAWS handles and locks which suit the Truth™ Awning/Casement Window 100mm.
