Architectural Series | 704FTHSlideMASTER™ Sliding Door (Flush Top Hung)

SlideMASTER™ Sliding Door (Flush Top Hung)
Maximum Panel Height* 3300mm
Maximum Panel Width* 2500mm
Maximum Glass Thickness ≤ 26mm
SHGC Range 0.24 - 0.74
Uw Range 2.2 - 4.2
AS2047 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Series 704FTH is a high performance, top hung sliding door with recessed top and bottom rails and jamb stiles.
  • Doors have been tested for compliance with the relevant Australian Standards.  Achieved a high water resistance of 300Pa.
  • The custom Centor E3 quad rollers are fully adjustable up and down when the door is in the frame.
  • The extra strong multi hollow meeting stiles allow large sliding doors to be fabricated in high wind load areas, refer panel strength tables.
  • This door has been tested to 3300mm high with 2500mm wide panels.
  • There are a large variety of door combinations (XF,  FX, FXXF,  XXF,  FXX,  FXXXXF, XXXF, FXXX, FXXXXXXF and corner doors).
  • We can fit Centor roller screens behind Series 704 sliding doors up to 7400mm wide.
  • Square clean lines with soft radius edges on internal meeting stile corners.
  • Doors fitted with custom mortice lock at meeting stiles. Lock only accessible from the inside.
  • Slimline stiles posess built-in, full height, finger grip inside and out.
  • Aluminium sub-sills are standard under Series 704FTH doors. We have a variety of sub-sills to choose from.
  • Sub-sills are fitted with integrated co-extruded Santoprene drainage hole cover flap to prevent blow-back.
  • Door panels will accept 24mm to 26mm double glazed IGU's.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
  • FEATURES OVERVIEW

    • Recessed Head

      The door head is fully concealed into the building envelope to ensure clear glass sightlines right to the ceiling.

      Recessed Head

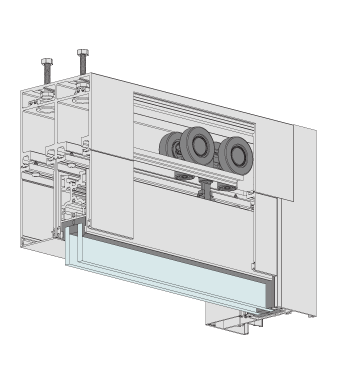

    • Top Hung Sliding Panels

      Sliding panels are supported at the head with heavy duty rollers for smooth operation.

      Top Hung Sliding Panels
    • Recessed Sill

      When recessed into floor, clear glass sightlines can be achieved and sill can be combined with a FlowTHRU drain for the ultimate flush sill solution.

      Recessed Sill
    • Recessed Jamb

      Door jamb is fully concealed into the building envelope and stile recesses into the jamb to deliver clear glass sightlines.

      Recessed Jamb
  • COMPLEMENTARY PRODUCTS

    AWS complementary product options designed for use with Series 704FTH SlideMASTER™ Sliding Door (Flush Top Hung).

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 704FTH.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 704FTH but differ in aesthetics and performance.
