Architectural Series | Series 412

Architectural Series | Series 412ViewMASTER™ Bi-Fold Door (bottom rolling)

ViewMASTER™ Bi-Fold Door (bottom rolling)
Maximum Panel Height* 3000mm
Maximum Panel Width* 1000mm
Maximum Glass Thickness ≤ 28mm
SHGC Range 0.14 - 0.59
Uw Range 3.4 - 6.2
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail [email protected]

Key Features / Performance Characteristics

  • Series 412 Bi-fold door (bottom rollers) has been designed to accept the 50mm thick heavy duty Series 50 and 52 doors.
  • Bi-fold doors can be manufactured with compliant panels up to 3000mm high.
  • Series 412 bi-fold doors roll on Centor™ F3 stainless steel bearing rollers running in heavy duty concealed sill track.
  • Heavy duty F3 will carry bi-fold door panels up to 80kg.
  • The Surelock™ adjustment on the bottom pivots and carriers allow all panels to be lifted or lowered easily with a small flat screwdriver and spanner.
  • These bi-fold doors can be fitted with Centor S1E Eco Screen
  • Sill rollers and pivots are positioned under the door panels and covered with flexible silicone flap. This sill flap folds over the sill carrier brackets as they roll along the sill.
  • The sill flap on Series 412 bi-fold doors keeps dust and water away from the sill rollers.
  • As the rollers are under the doors there is no external projections. The 102mm frame is flush inside and out.
  • Carriers, pivots, hinges and fixings supplied in 304 / 316 stainless steel for the Series 412 bi-fold doors.
  • Top guide runs in semi rigid PVC channel insert to reduce noise for bi-fold doors.
  • Snap-on jamb adapter allows us to offer an extensive range of jambs to cover almost any situation.

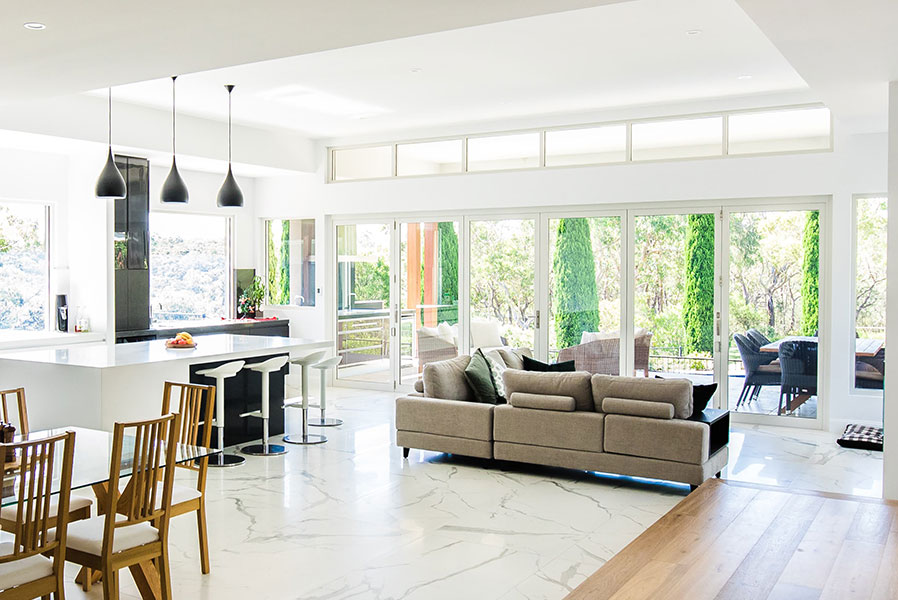

  • Run through conventional CentreGLAZE™ jambs allow us to offer highlights over bi-fold doors with run through jambs. Run through jambs are significantly stronger and waterproof.
  • A variety of lever and lock options are available for this bi-fold door including multi-point locking for added security.

Resources & Downloads

Add Checked Documents to MyProject Download Checked Documents
  • Series 412 Bi-fold Door

    Series 412 Product Info Sheet

Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents
Add Checked Documents to MyProject Download Checked Documents

    • Recessed Sill Detail

      The sill can be recessed into floor finish and fitted with stainless steel Creative Drain drainage system.
      Recessed Sill Detail
    • Hardware

      A full range of hardware available including multiple 4-point locking mechanisms.
    • Screening

      All Elevate™ systems can incorporate Centor roll-away screens.

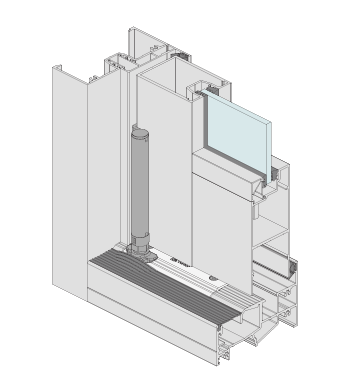

    • Concealed Bottom Roller

      Doors supported on concealed articulated rollers with built-in track sweeper.
      Concealed Bottom Roller
    • Heavy Duty Head Guide

      The stainless steel head guide rolls in semi-rigid PVC guide to reduce operation noise.
      Heavy Duty Head Guide
    • Adjustment

      Door panels can be adjusted up, down and sideways.
