Architectural Series | 704LS

Architectural Series | 704LSSlideMASTER™ Sliding Door (Lift Slide)

SlideMASTER™ Sliding Door (Lift Slide)
Maximum Panel Height* 3300mm
Maximum Panel Width* 2500mm
Maximum Glass Thickness ≤ 24mm
SHGC Range 0.15 - 0.66
Uw Range 3 - 6.2
AS1428.1 Compliant Sill AS2047 Testing Certified Livable Housing

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • Series 704LS is a lift-and-slide, sliding door system that seperates the sliding and sealing from the locking action, allowing the door to virtually hover over the frame when in motion.
  • On opening, the unique roller design engages and lifts the sliding door panel off the frame, allowing the door to slide effortlessly with minimal friction.
  • On closing, the door panel lowers and engages with the weather seal.
  • AS1428.1 wheelchair compliant sill creating a continuous path of travel as required to meet the National Construction Code.
  • Doors have been tested for compliance with the relevant Australian Standards. Achieved a high water resistance of 300Pa.
  • The extra strong multi hollow meeting stiles allow large sliding doors to be fabricated in high wind load areas, refer panel strength tables.
  • This door has been tested to 3300mm high with 2500mm wide panels.
  • Available in a selection of common door configurations (XF,  FX, FXXF and corner doors).
  • We can fit Centor roller screens behind Series 704 sliding doors up to 7400mm wide.
  • Square clean lines with soft radius edges on internal meeting stile corners.
  • Aluminium sub-sills are standard under Series 704LS doors. We have a variety of sub-sills to choose from.
  • Sub-sills are fitted with integrated co-extruded Santoprene drainage hole cover flap to prevent blow-back.
  • Doors are compatible with Series 406 single glazed FrontGLAZE™ and Series 426 double glazed FrontGLAZE™ framing.
  • Optional AWS Trickle Vent passive ventilation system can be fitted into tubular sub-head.
  • Door panels will accept glass up to 8.50mm and 24mm double glazed IGU's.

Resources & Downloads

  • FEATURES OVERVIEW

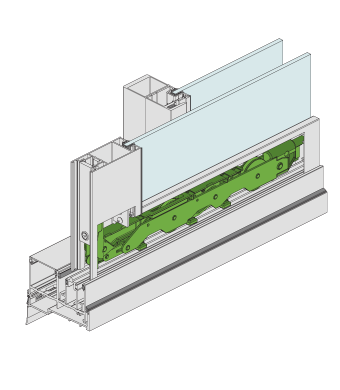

    • Roller Carriage Lifts and Lowers Panel

      On opening, the unique roller design engages and lifts the sliding door panel off the frame. On closing, the door panel lowers and engages with the weather seal.

      Roller Carriage Lifts and Lowers Panel
  • COMPLEMENTARY PRODUCTS

    AWS complementary product options designed for use with Series 704LS SlideMASTER™ Sliding Door (Lift Slide).

  • RELATED SYSTEMS

    AWS systems designed to share similar aesthetic and performance qualities to Series 704LS.

  • ALTERNATIVE SYSTEMS

    AWS systems which offer a similiar function to Series 704LS but differ in aesthetics and performance.
