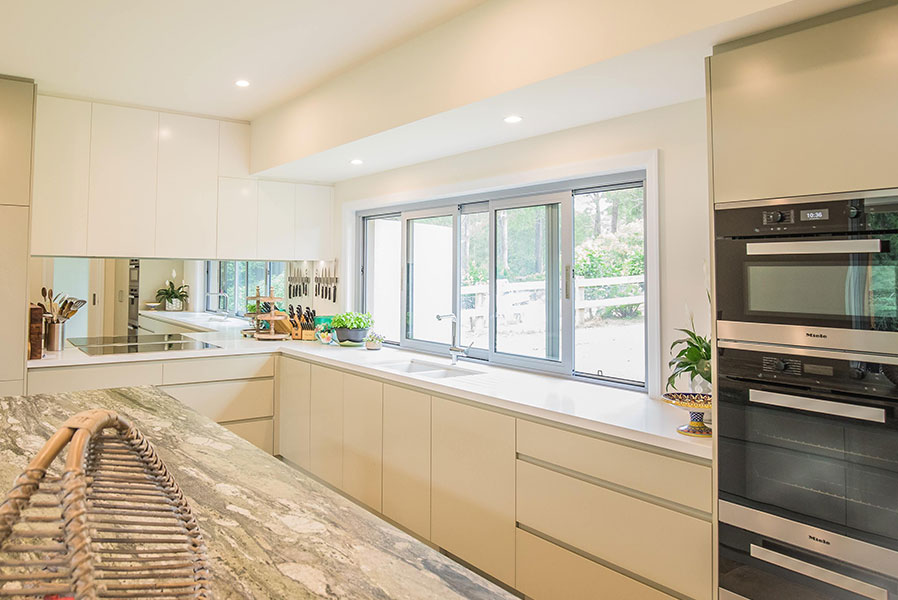

Architectural Sliding Window (double sash design)

Architectural Sliding Window (double sash design)
Maximum Panel Height* 1600mm
Maximum Panel Width* 1350mm
Maximum Glass Thickness ≤ 20mm
SHGC Range 0.18 - 0.66
Uw Range 3.3 - 6
Acoustics Testing Certified AS2047 Testing Certified BAL40 Testing Certified Safe4Kids Testing Certified

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

  • 102mm thick commercial grade sliding window, incorporates bold frame lines and thick (strong) sashes that can carry thick heavy glass, including double glazing.
  • The perimeter frame designed to make installation into brick veneer and cavity brick easier with built-in nailing fins (weather bars).
  • Extra strong sashes allow large sash windows to be fabricated for high wind load areas.
  • Double sash design with the external sash fixed.
  • Both fixed and opening sashes can be installed, replaced or reglazed from inside.
  • Large variety of sliding window combinations possible (SF, FS, SFS, SS or FSSF) with and without highlights and or lowlights.
  • Sliding windows can be fitted with surface or mortice deadlocks.
  • The Series 462 sliding window sashes run on heavy duty wheel carriages.
  • Flyscreens can be fitted. When there is no requirement for flyscreens, frame is fitted with cavity closers so there are no unwanted recesses.
  • Co-extruded PVC sill seal keeps water out of the system.
  • Built-in proprietary ball valve drainage to transfer any water that may get into the drainage trough to the tubular sump sill.
  • This sliding window will resist up to 300Pa water infiltration and comply with air conditioning requirements.

Resources & Downloads

  • FEATURES OVERVIEW

    • Glazing

      The 462 can accept varying thicknesses of glass up to 20mm.
      Glazing
    • Hardware

      Custom ANDO™ mortice lock with push button release. Face plate coloured to match.
      Hardware
    • Comparison

      The wide 44mm Series 462 jamb compared to conventional residential sliding window.
      Comparison
    • Nailing Fins

      Most AWS Commercial products can incorporate nailing fins for residential construction.
      Nailing Fins
    • Drainage

      The proprietary ball valve allows water out of sill while limiting air blow-back.
      Drainage
    • Rollers

      Sashes slide on extra heavy duty, large diameter wheels. With double bogey carriages under heavy sashes.
      Rollers
