Architectural Series | Series 417

Architectural Series | Series 417

LouvreMASTER™ Sun Control Shutter

LouvreMASTER™ Sun Control Shutter
Maximum Panel Height* 3000mm
Maximum Panel Width* 1500mm
Maximum Glass Thickness NA

* Subject to individual site conditions and wind loads. Contact AWS Technical Support for more information, e-mail techsupport@awsaustralia.com.au

Key Features / Performance Characteristics

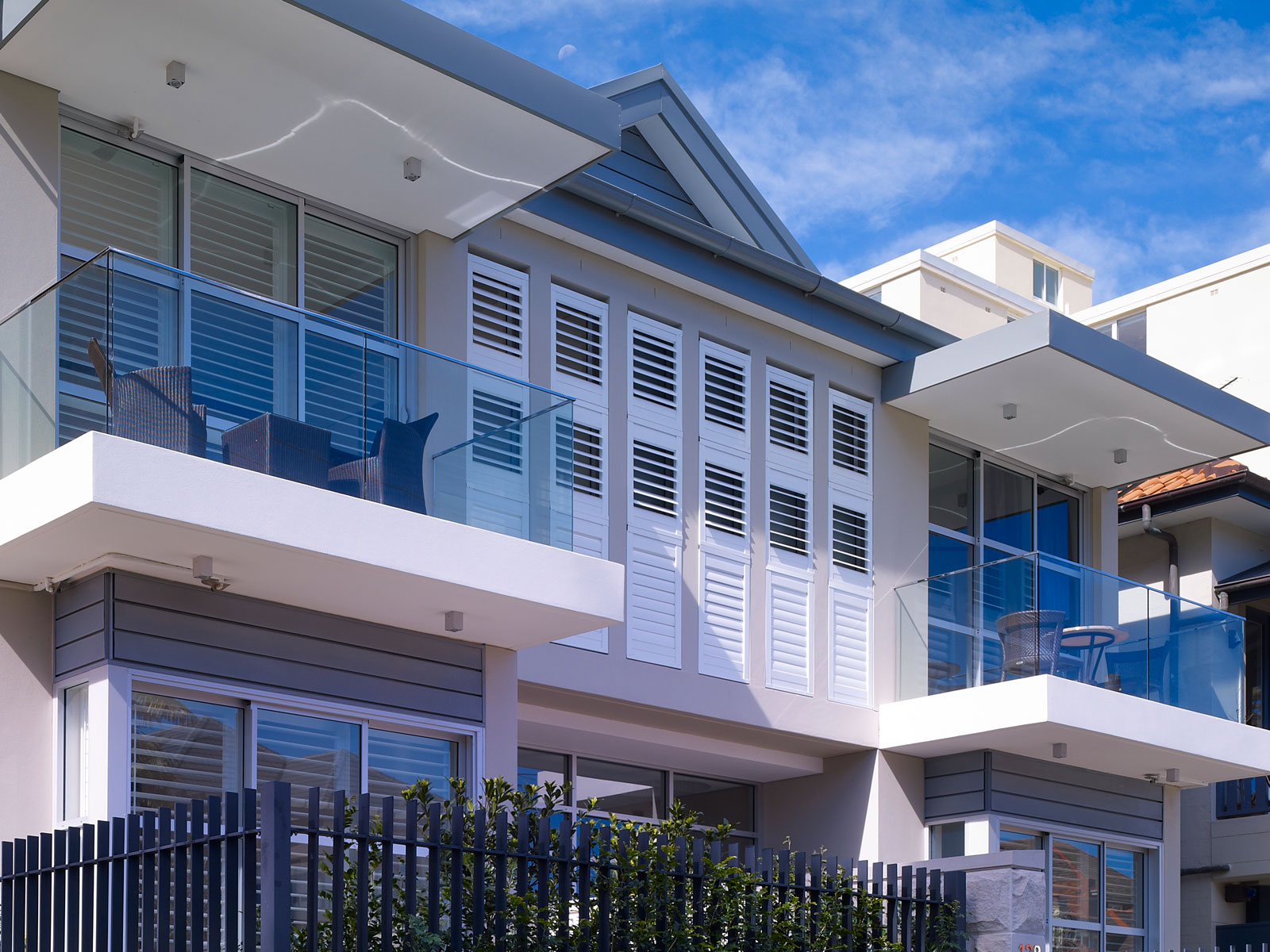

  • The LouvreMASTER™ sun control shutter is designed for external sun and/or privacy control in fixed panels or moving panels in the form of a hinged, sliding or a Bi-folding door.
  • The LouvreMASTER™ system has been successfully tested for compliance with AS 2047 (wind and proof load). 1200mm wide door panel will withstand 2000Pa serviceability at 1/250 deflection and proof tested to 3000Pa.
  • There is an awning / casement sash that will accept LouvreMASTER™ and can be fitted into Series 400 and 466 frames.
  • The system has all blades working and has no dead or half blades.
  • Louvre window blades are 88mm by 14mm oval shape. The pitch for the blades can vary from 60 to 80mm depending on panel height.
  • The louvre blades can be clamped in any position between open and closed with the use of an activation handle.

Resources & Downloads

  • FEATURES OVERVIEW

    • Blade Control

      The 417 features a patented blade control system.
      Blade Control
    • Guides

      Specifically designed spigot system for unique bottom roller guide.
      Guides
    • Strength

      Specifically designed spigot system to maintain strength in top hung applications.
      Strength
    • LouvreMASTER™

      The 417 can be incorporated into awning sashes.
      LouvreMASTER™
    • Winder Options

      Various winder options available for awning sashes.
      Winder Options
    • Louvres in Panels

      We can fit the adjustable blades into door panels or awning sashes.
      Louvres in Panels
